# An introduction to kernel density estimation

This talk is divided into three parts: first is on histograms, on how to construct them and their properties. Next are kernel density estimators - how they are a generalisation and improvement over histograms. Finally is on how to choose the most appropriate, 'nice' kernels so that we extract all the important features of the data.

A histogram is the simplest non-parametric density estimator and the one that is mostly frequently encountered. To construct a histogram, we divide the interval covered by the data values and then into equal sub-intervals, known as `bins'. Every time, a data value falls into a particular sub-interval, then a block, of size equal 1 by the binwidth, is placed on top of it. When we construct a histogram, we need to consider these two main points: the size of the bins (the binwidth) and the end points of the bins.

The data are (the log of) wing spans of aircraft built in from 1956 - 1984. (The complete dataset can be found in Bowman & Azzalini (1997) Applied Smoothing Techniques for Data Analysis. We use a subset of this, namely observations 2, 22, 42, 62, 82, 102, 122, 142, 162, 182, 202 and 222. We only use a subset otherwise some plots become too crowded so it is for display purposes only.) The data points are represented by crosses on the x-axis.

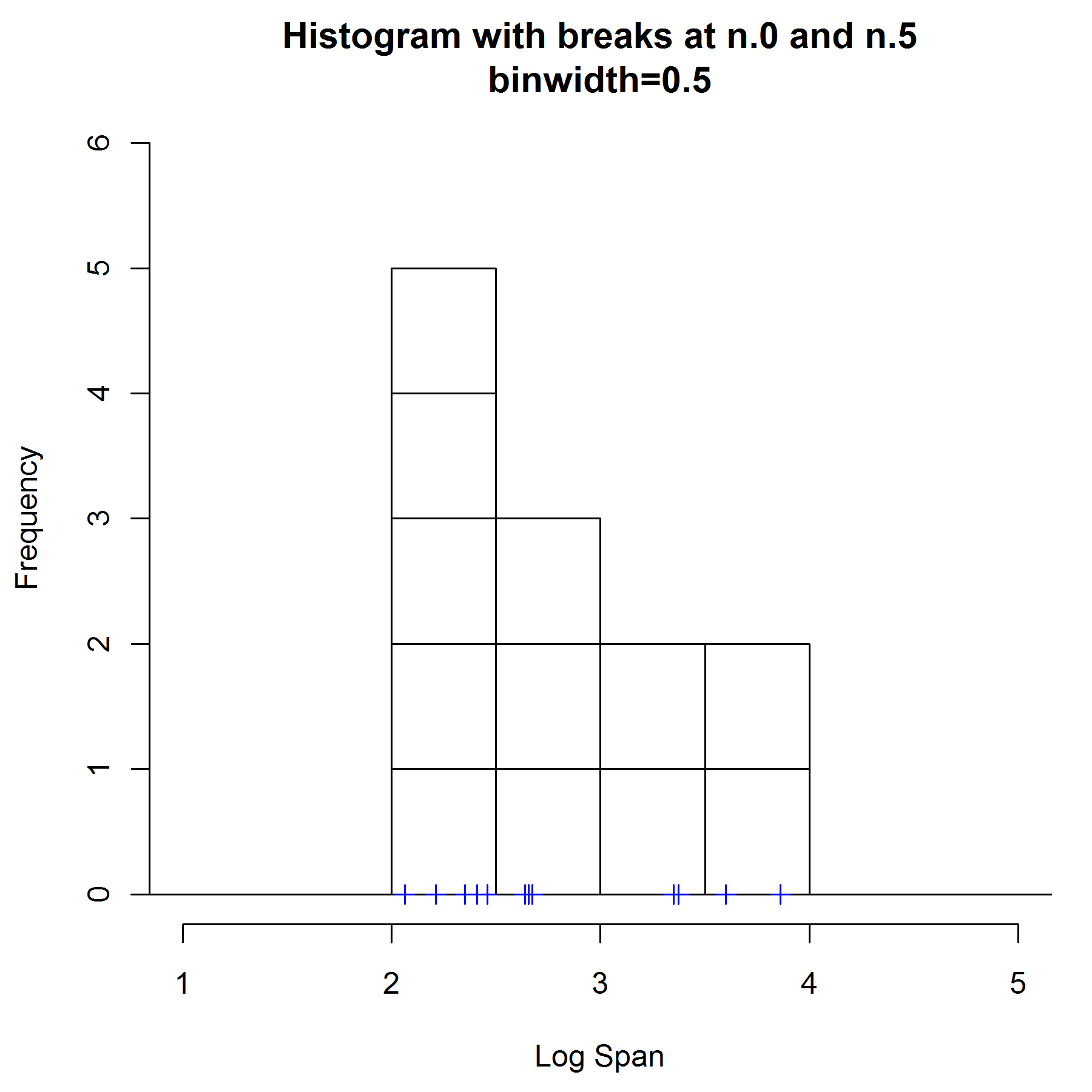

If we choose breaks at 0 and 0.5 and a binwidth of 0.5, the our histogram looks like the one on top. It appears that the this density is unimodal and skewed to the right, according to this histogram on the left. The choice of end points has a particularly marked effect of the shape of a histogram. For example if we use the same binwidth but with the end points shifted up to 0.25 and 0.75, then out histogram looks like this one below. We now have a completely different estimate of the density - it now appears to be bimodal.  We have illustrated the properties of histograms with these two examples: they are
• not smooth
• depend on end points of bins
• depend on width of bins

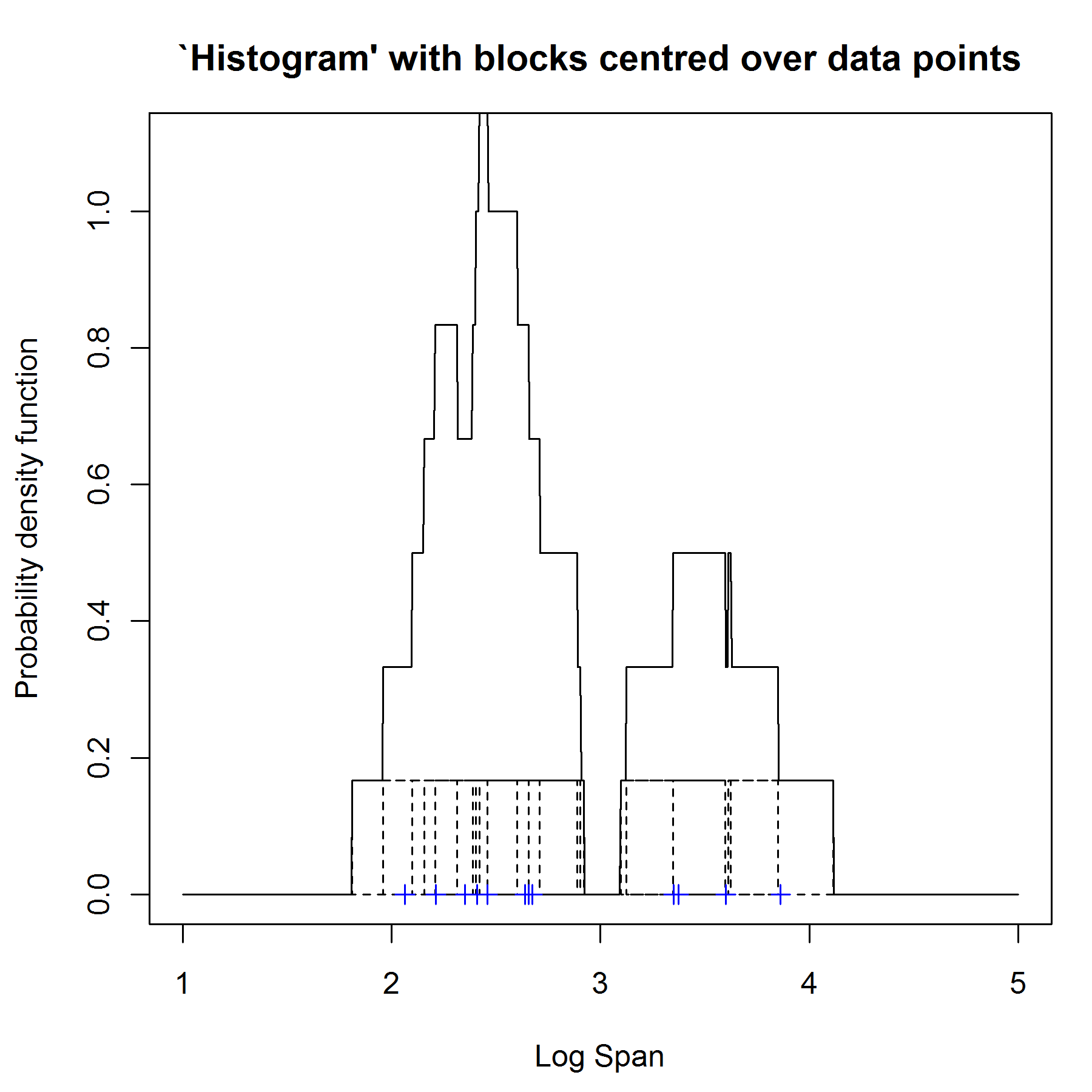

We can alleviate the first two problems by using kernel density estimators. To remove the dependence on the end points of the bins, we centre each of the blocks at each data point rather than fixing the end points of the blocks. In the above `histogram', we place a block of width 1/2 and height 1/6 (the dotted boxes) as there are 12 data points, and then add them up. This density estimate (the solid curve) is less blocky than either of the histograms, as we are starting to extract some of the finer structure. It suggests that the density is bimodal.

This is known as box kernel density estimate - it is still discontinuous as we have used a discontinuous kernel as our building block. If we use a smooth kernel for our building block, then we will have a smooth density estimate. Thus we can eliminate the first problem with histograms as well. Unfortunately we still can't remove the dependence on the bandwidth (which is the equivalent to a histogram's binwidth).

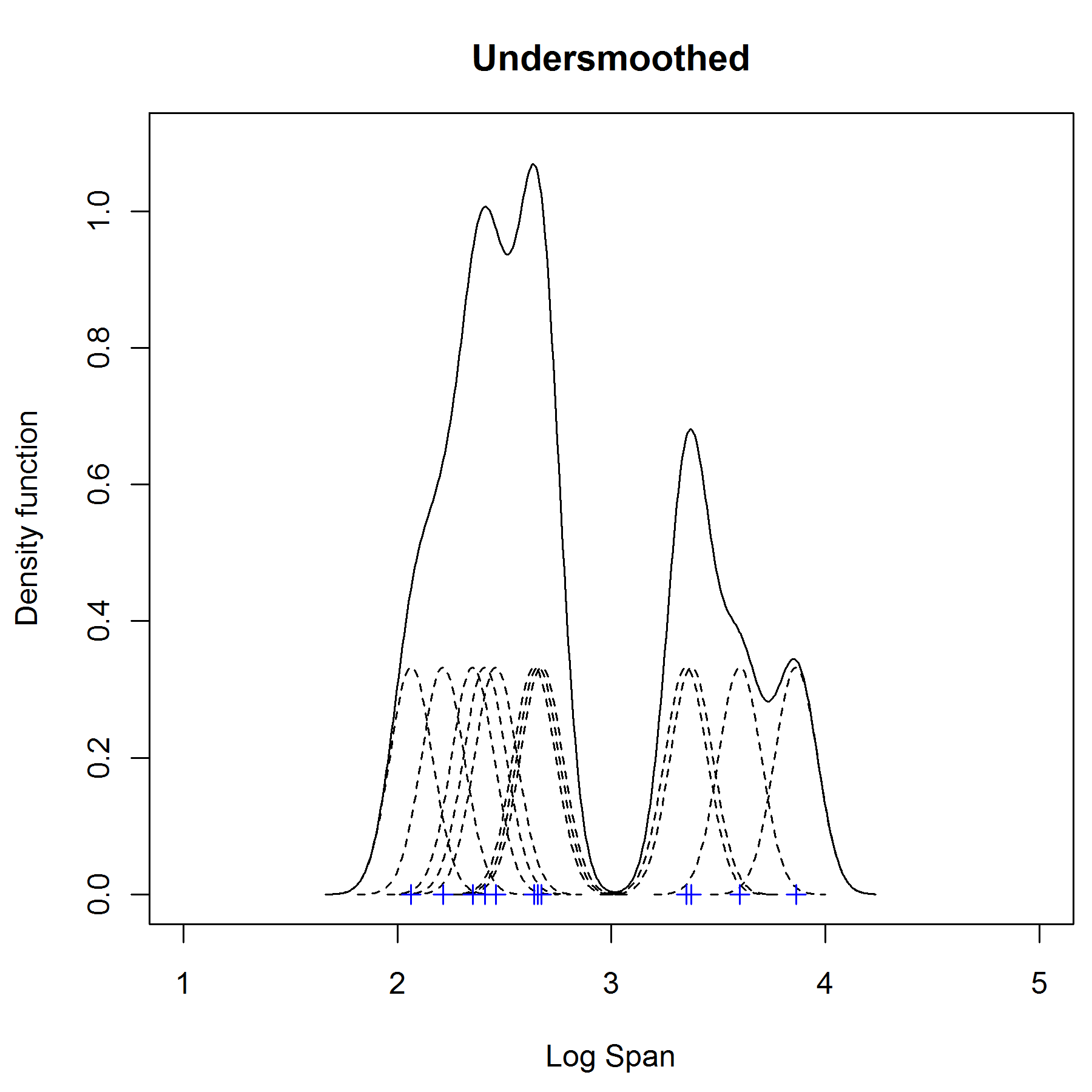

It's important to choose the most appropriate bandwidth as a value that is too small or too large is not useful. If we use a normal (Gaussian) kernel with bandwidth or standard deviation of 0.1 (which has area 1/12 under the each curve) then the kernel density estimate is said to undersmoothed as the bandwidth is too small in the figure below. It appears that there are 4 modes in this density - some of these are surely artifices of the data. We can try to eliminate these artifices by increasing the bandwidth of the normal kernels to 0.5. We obtain a much flatter estimate with only one mode. This situation is said to be oversmoothed as we have chosen a bandwidth that is too large and have obscured most of the structure of the data.  So how do we choose the optimal bandwidth? A common way is the use the bandwidth that minimises the optimality criterion (which is a function of the optimal bandwidth) AMISE = Asymptotic Mean Integrated Squared Error so then optimal bandwidth = argmin AMISE i.e. the optimal bandwidth is the argument that minimises the AMISE.

In general, the AMISE still depends of the true underlying density (which of course we don't have!) and so we need to estimate the AMISE from our data as well. This means that the chosen bandwidth is an estimate of an asymptotic approximation. It now sounds as if it's too far away from the true optimal value but it turns out that this particular choice of bandwidth recovers all the important features whilst maintaining smoothness.

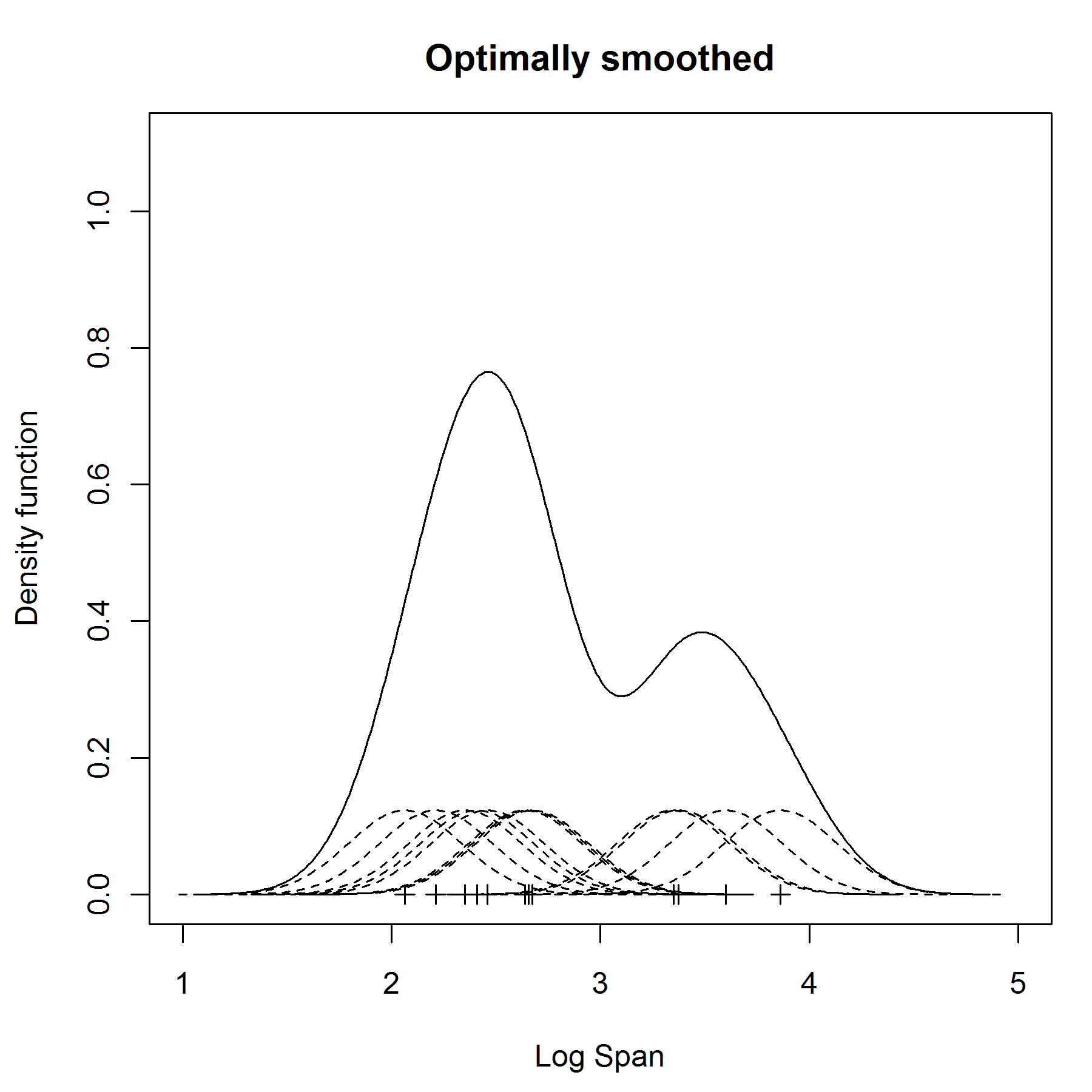

The optimal value of the bandwidth for our dataset is about 0.25. From the optimally smoothed kernel density estimate, there are two modes. As these are the log of aircraft wing span, it means that there were a group of smaller, lighter planes built, and these are clustered around 2.5 (which is about 12 m). Whereas the larger planes, maybe using jet engines as these used on a commercial scale from about the 1960s, are grouped around 3.5 (about 33 m). The properties of kernel density estimators are, as compared to histograms:
• smooth
• no end points
• depend on bandwidth
This has been a quick introduction to kernel density estimation. The current state of research is that most of the issues concerning one-dimensional problems have been resolved. The next stage is then to extend these ideas to the multi-dimensional case where much less research has been done. This is due to that there are the orientation of multi-dimensional kernels has a large effect on the resulting density estimate (which has no counterpart in one-dimensional kernels). I am currently looking for reliable methods for bandwidth selection for multivariate kernels. Some progress that I have made in plug-in methods is here. However this page is more technical and uses equations!

These notes are an edited version of a seminar given by Tarn Duong on 24 May 2001 as part of the Weatherburn Lecture Series for the Department of Mathematics and Statistics, at the University of Western Australia. A printer-friendly PDF version is here. Please feel free to contact the author at tarn(dot)duong(at)gmail(dot)com if you have any questions. Tarn's web page contains more details of his research into kernel smoothing methods.
